Wire Probe
Wire Probe TPW-Series
Wire Probe TPW-Series
with TerminalESocket
Universal Probe TPO-Series
Customized Pin





Wire Probe TPW-Series with TerminalESocket

Wire Probe TPW-Series with TerminalESocket

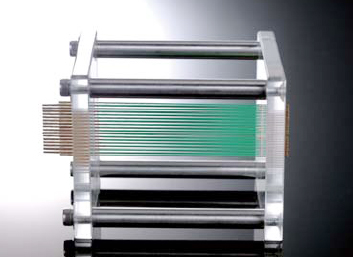

¡Structure of Fixture

Structure of Fixture


ŸSpecifications

Dia.~Length-Terminal
0.2~71-A
0.3~81-A
Standard Pitch
0.3
0.5
Pin Pressure igj
25
85
Pin Dia. immj
0.2
0.3
Isolated Area Dia. immj
0.23
0.33
Electric Resistance iƒ¶j
0.9
0.5

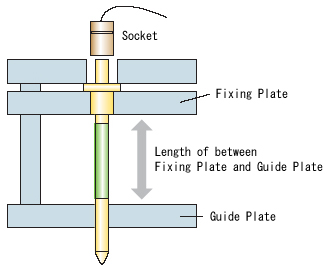

¦From the point of view about durability, we recommend below mentioned the length of between guide plate and fixing plate.



ŸPin Pressure

Store and pin pressure

Store and pin pressure Store and pin pressure



ŸPresent Style of Tulip Wire Probe ( with Terminal )

Present Style of Tulip Wire Probe ( with Terminal )

Tip Configurations

Pin
Hemisphere
Ball Point
Flat
Three-Needle
P

Pin
Q

Hemisphere
B

Ball Point
F

Flat
C

Three-Needle

¦Avabilable only on ƒÓ0.3mm







ŸPin

Specifications
Material
SKH
Plating
Ni+Au
Insulation
Fluoropolymer Coating


ŸTerminal , Socket

Availability for terminals

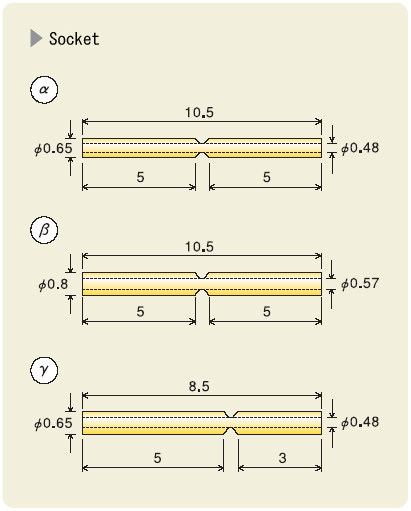

Soket
i with 500mm lead wire j

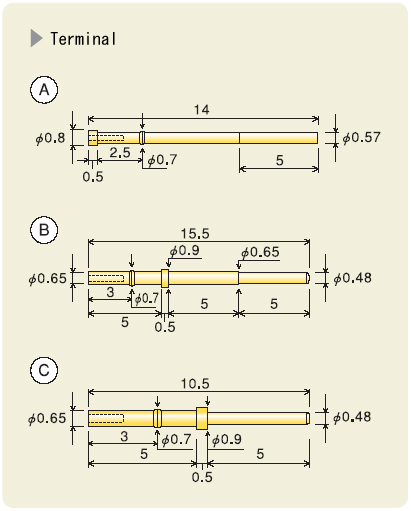

Terminal
ƒ¿
B
ƒÀ
A
ƒÁ
AAC

Specifications
Material SKH
Plating
Ni+Au
Fixture Solder ( between probe and terminal )

Insert ( between terminal and socket )



Product Code

Product Code

¦In the case terminal is not , product code for terminal would be X.
