Universal Probe TPO-Series

Universal Probe TPO-Series


žUniversal pins ƒÓ0.08mm for narrow pitch are available.

žEnhance higher cost performance as we are managing all of production process by our own. Straighten the coiled material, grinding, polishing, and plating in our factory.

žMove over, we will be flexible to your requirement on ordering quantity and specifications.

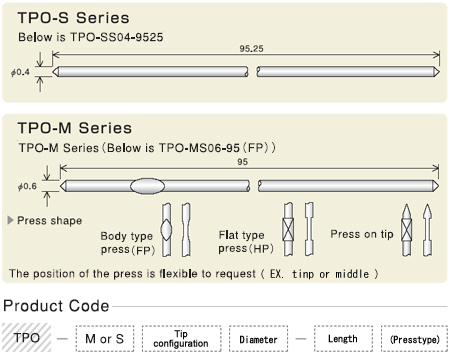

ŸSpecifications

Material
SWP-AAPB
Plating
Ni-PAAu
Diameter
ƒÓ0.06mm`ƒÓ1.3mm

¦Insulation ( upon your request ) EEEFluoropolymer



ŸTip Configurations

Sharp
Ball Point
Hemisphere
Dome
S

Sharp
B

Ball Point
Q

Hemisphere
D

Dome



ŸTip Angle ( example )

Tip Angle ( example )

Tip Angle ( example )

¦We will be flexible to your requirements on tip angle.
