Wire Probe
Wire Probe TPW-Series
Wire Probe TPW-Series
with TerminalESocket
Universal Probe TPO-Series
Customized Pin

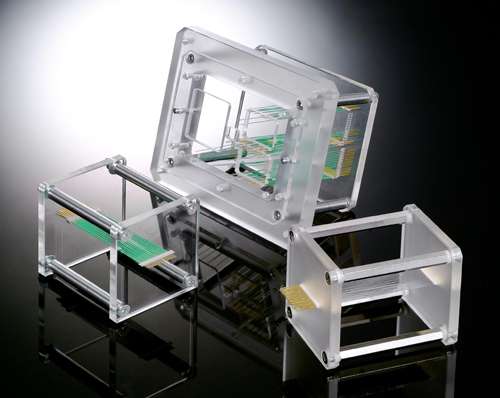

Probe Fixture Style With Terminal Probe Fixture Style

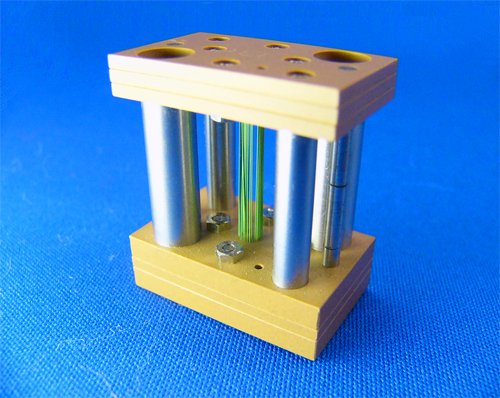

Probe Fixture Style
With Terminal Probe Fixture Style


Wire probes, generally called as needle type probe has elasticity on itself. This wire probes have simple construction using highly elastic wire to enhance spring force.

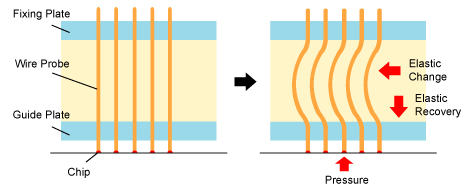

Generates pin pressure by utilizing elastic change and recovering of wire when pressure would be applied to probe. Standard test fixture is consisted with plate to fix wire probe, and to determine position on each chips.




”Features

žWire probe make possible to contact fine pitch point.

žIt has high pin pressure compared with same diameter spring probe.

žPossible to stable electric resistance.

žBuilt in structure make possible stable electric resistance and long life.




”Pin Pressure

Pin pressure of wire probe is influenced material, diameter and the length of guide plate and fixing plate. And, it raise suddenly and become stable at proper stroke. But, in the case of over stroke, it become reduce.


Pin Pressure
