Wire Probe
Wire Probe TPW-Series
Wire Probe TPW-Series
with Terminal・Socket
Universal Probe TPO-Series
Customized Pin






Wire Probe TPW-Series

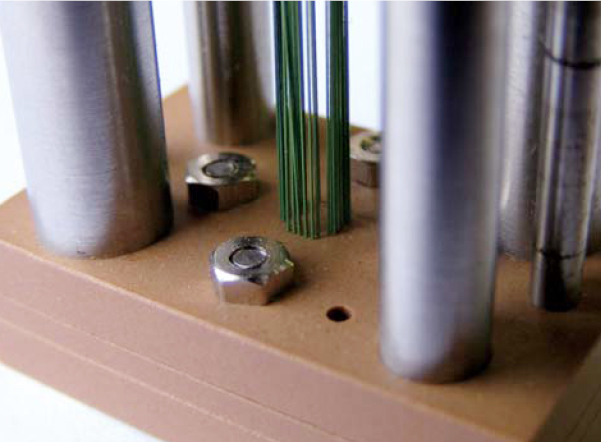

■Structure of Fixture

Structure of Fixture


■Feature of Tulip Wire Probe

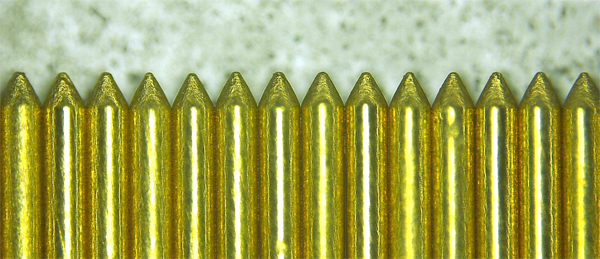

1) Stable Tip of Shape

For long year's, our company have manufactured grinded products. This experience make possible to stable tip of shape, even if very small diameter.

φ70μm, 60degree Ball Point
φ70μm, 60degree Ball Point

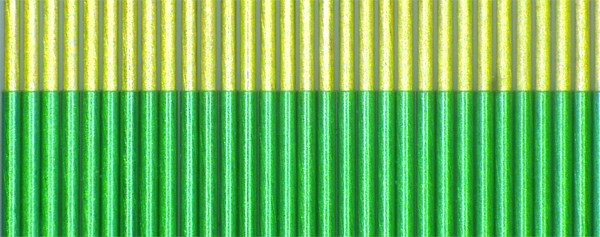

2) Precise Isolation Coating

◆Change of Isolation Coating in Tulip Wire Probe

Fluorocarbon Polymers Coating
Epoxy Resin Coating
Fluorocarbon Polymers Coating
(Sprayed)

Epoxy Resin Coating
(Electrodeposition Coating)

This probe don't have stable coating thickness and position.


For solving problem, we installed equipment of electrodeposition coating machine.


New Process Added Products
New Process Added Products
(Present Style of Coating)

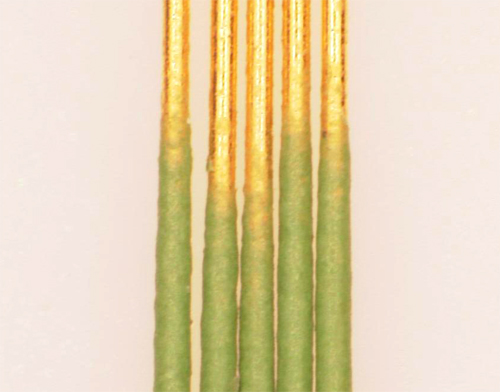

For meeting customer's high level demand, we added new process. It make possible stable coating thickness, position and clear edge!


◆Present Style of Tulip Wire Probe

Present Style of Tulip Wire Prob

Tip of Shape

60 degree Ball Point
Chisel
Hemisphere
Flat
60B

60 Degree Ball Point

※Available for Requested Angle and Tip Diameter.
T

Chisel
Q

Hemisphere
F

Flat


Specifications

Diameter
φ0.03×0.11mm
Material
W(Tungsten)、Re-W(Rhenium Tungsten)、SKH(High Speed Steel)
Plating
Ni+Au、Ni+Pd


Charasteristics:in the case of Tungsten

Dia.×Length
0.11×30 0.09×30 0.07×30 0.05×20
0.04×20 Material:Re-W
Standard Pitch
(mm)
0.2
0.15
0.11
0.09
0.07
Pin Pressure
(g)
18.0
10.0
3.5
2.8
1.2
Pin Dia.
(mm)
0.108
0.088
0.068
0.048
0.038
Isolated Area Dia.
(mm)
0.13
0.11
0.09
0.07
0.05
Electric Resistance
(Ω)
0.25
0.35
0.60
0.80
1.80


Parts No. Style

Parts No. Style


If you need another kind of probe, please feel free to contact us any time.
